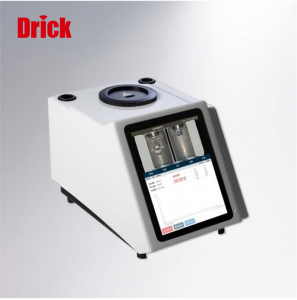

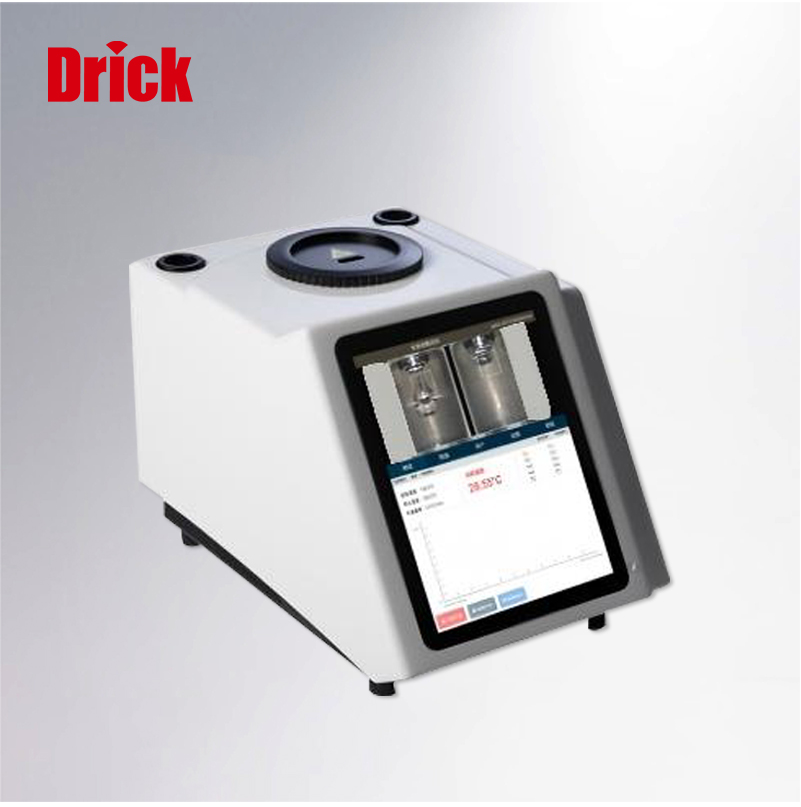

Video Dropping Point and Softening Point Tester (Fat Cup Method) DRK-QD350
Short Description:
DRK-QD350 Video Dropping Point and Softening Point Tester (Fat Cup Method) DRK-QD350 Fully Automatic Dropping Point and Softening Point Tester combines high-precision temperature control technology and high-definition video camera technology. It not only provides users with accurate, stable and reliable test results but also brings users an efficient and convenient testing experience. The high-definition video allows users to clearly see the whole process of sample state changes. The automat...
DRK-QD350 Video Dropping Point and Softening Point Tester (Fat Cup Method)
DRK-QD350 Fully Automatic Dropping Point and Softening Point Tester combines high-precision temperature control technology and high-definition video camera technology. It not only provides users with accurate, stable and reliable test results but also brings users an efficient and convenient testing experience. The high-definition video allows users to clearly see the whole process of sample state changes. The automatic detection and real-time spectrum display facilitate users to accurately measure the dropping point/softening point of the sample. The cups and measurement methods that comply with the standards can ensure the accuracy of the results.
Product Features:
- High-definition video for visualizing sample changes;
- Capable of testing two samples at a time;
- Data can be directly printed via a printer;
- Complies with 21 CFR Part 11, audit trail, “Pharmacopoeia 2020″ and electronic signature;
- Complies with national and international general standards.
Application Areas:
The Fully automatic dropping point and softening point tester plays an important role in the chemical industry and pharmaceutical research. It is an essential instrument for measuring the dropping point and softening point of materials such as petrolatum, asphalt, tar, polymers, resins, pastes, waxes and more.
Technical Parameters:
| Temperature Range | From room temperature to 400 °C | Temperature Resolution | 0.01 °C |
| Detection Mode | Manual detection | Heating Rate | 0.1 – 20 °C/Min |
| Accuracy | ±0.2 °C (<250 °C), ±0.4 °C (>250 °C) | User Management | 200 users |
| Display Method | 10.4-inch color display screen | Processing Capacity | 2 samples per batch (can test 2 samples simultaneously) |
| Experimental Schemes | 100 sets | Data Interface | USB, RS232, Network Port |
| Data Storage | 64G | User Management | Yes / Four-level authority management |
| Experimental Method | Authority locking function | Advanced protection for exported file verification | MD5 protection |
| Printing Method | WIFI printing, Serial port printing | Multiple file formats for export | PDF and Excel |
| Complies with GLP/GMP Specifications | Yes | Power Supply | 220V 50HZ Power: 120W |
| Complies with Standards | Complies with ASTM (D3204, D3461, D3104, D3954, D6090), DIN (51801, 51920), GB/T (2294-2019, 3498, 8728-1988), ISO (2176-1972, 4625-2) and “Pharmacopoeia 2020″ and other standards. | ||
Note: Due to technological progress, the information may be changed without further notice. The product shall be subject to the actual object in the later stage.
