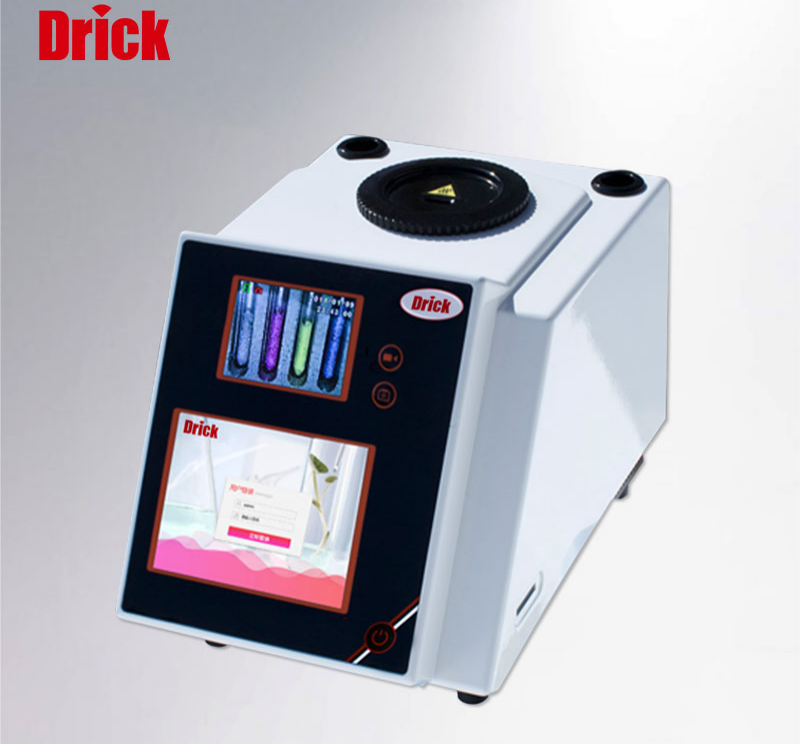

Semi-automatic Video Melting Point Apparatus DRK-X50
Short Description:
DRK-X50 Semi-automatic Video Melting Point Apparatus DRK-X50 semi-automatic video melting point apparatus perfectly combines high-precision temperature control technology and high-definition video camera technology. It not only provides users with accurate, stable and reliable test results but also offers an efficient and convenient testing experience. The high-definition video enables users to clearly observe the entire process of sample melting, facilitating the accurate measurement of th...
DRK-X50 Semi-automatic Video Melting Point Apparatus
DRK-X50 semi-automatic video melting point apparatus perfectly combines high-precision temperature control technology and high-definition video camera technology. It not only provides users with accurate, stable and reliable test results but also offers an efficient and convenient testing experience. The high-definition video enables users to clearly observe the entire process of sample melting, facilitating the accurate measurement of the sample’s melting point and melting range.
Application Areas:
Melting point apparatuses play a crucial role in the chemical industry and pharmaceutical research. They are essential instruments for the production of food, drugs, spices, dyes and other organic crystalline substances.
Product Features:
- High-definition video replaces traditional microscopic visual inspection.
- Can process 4 samples at a time.
- Equipped with a high-definition camera lens module.
- The whole machine has passed CE certification.
Technical Parameters:
| Temperature Range | Room Temperature – 400°C | Video Playback | Yes |
| Detection Method | Semi-automatic (automatic temperature control, manual detection) | Magnification | 7 |
| Processing Capacity | 4 samples per batch (can test four samples simultaneously) | User Management | 8 |
| Minimum Temperature Display Value | 0.1°C | Data Storage Results | 400 |
| Heating Rate | 0.1°C – 20°C (200 steps, continuously adjustable) | Video Storage Capacity | 8G |
| Capillary Size | Outer Diameter φ1.4mm, Inner Diameter: φ1.0mm | Display Mode | TFT high-definition true color screen |
| Accuracy | ±0.3°C (<250°C) ±0.5°C (>250°C) |
Data Interface | USB RS232 Network Port |
| Repeatability | Repeatability is ±0.1°C at 0.1°C/Min | Capillary Size | Outer Diameter φ1.4mm Inner Diameter: φ1.2mm |
| Exploration Mode | None | Packaging Dimensions | 430 * 320 * 370mm |
| Video Function | Take photos, record videos | Gross Weight | 6.15kg |
| Power Supply | 110 – 230V 50/60HZ 120W | 110 – 230V 50/60HZ 120W | 110 – 230V 50/60HZ 120W |
Note: Due to technological progress, the information may be changed without further notice. The product shall be subject to the actual object in the later stage.
