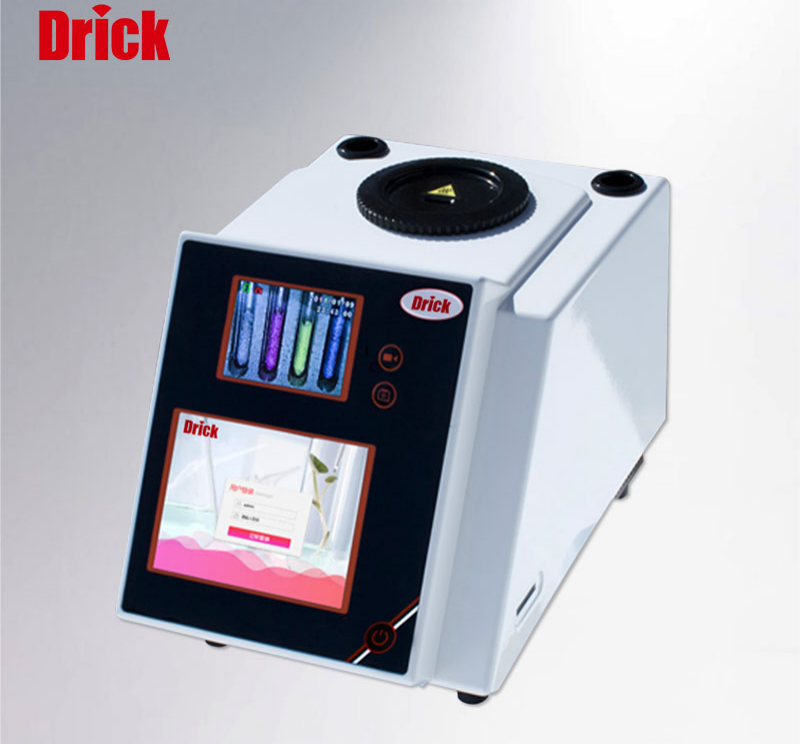

Semi-automatic Video Melting Point Apparatus DRK-X30
Short Description:
DRK-X30 Semi-automatic Video Melting Point Apparatus DRK-X30 semi-automatic video melting point apparatus combines high-precision temperature control technology and high-definition video camera technology. It not only provides users with accurate, stable and reliable test results but also brings an efficient and convenient testing experience. The high-definition video allows users to clearly observe the whole process of sample melting, facilitating the accurate measurement of the melting po...
DRK-X30 Semi-automatic Video Melting Point Apparatus
DRK-X30 semi-automatic video melting point apparatus combines high-precision temperature control technology and high-definition video camera technology. It not only provides users with accurate, stable and reliable test results but also brings an efficient and convenient testing experience. The high-definition video allows users to clearly observe the whole process of sample melting, facilitating the accurate measurement of the melting point and melting range of the sample.
Application Fields:
The melting point apparatus plays an important role in the chemical industry and pharmaceutical research. It is an instrument for producing food, drugs, spices, dyes and other organic crystalline substances.
Product Features:
- High-definition video replaces traditional microscopic visual inspection.
- Can process 4 samples at a time.
- The whole machine has passed CE certification.
Technical Parameters:
| Temperature Range | Room Temperature – 350°C | User Management | None |
| Detection Method | Semi-automatic (automatic temperature control, manual detection) | Repeatability | Melting point repeatability is ±0.1°C at 0.1°C/Min |
| Processing Capacity | 4 samples per batch (can test four samples simultaneously) | Data Storage Results | 200 |
| Minimum Temperature Display Value | 0.1°C | Video Storage Capacity | 8G |
| Heating Rate | 0.1°C – 20°C (200 steps, continuously adjustable) | Display Mode | TFT high-definition true color screen |
| Accuracy | ±0.3°C (<250°C) ±0.5°C (>250°C) |
Data Interface | USB RS232 Network Port |
| Exploration Mode | None | Capillary Size | Outer Diameter φ1.4mm Inner Diameter: φ1.2mm |
| Video Function | Take Photos | Packaging Dimensions | 430 * 320 * 370mm |
| Video Function | None | Power Supply | 110 – 230V 50/60HZ 120W |
| Magnification | 7 | Gross Weight | 6.15kg |
Note: Due to technological progress, the information may be changed without further notice. The product shall be subject to the actual object in the later stage.
