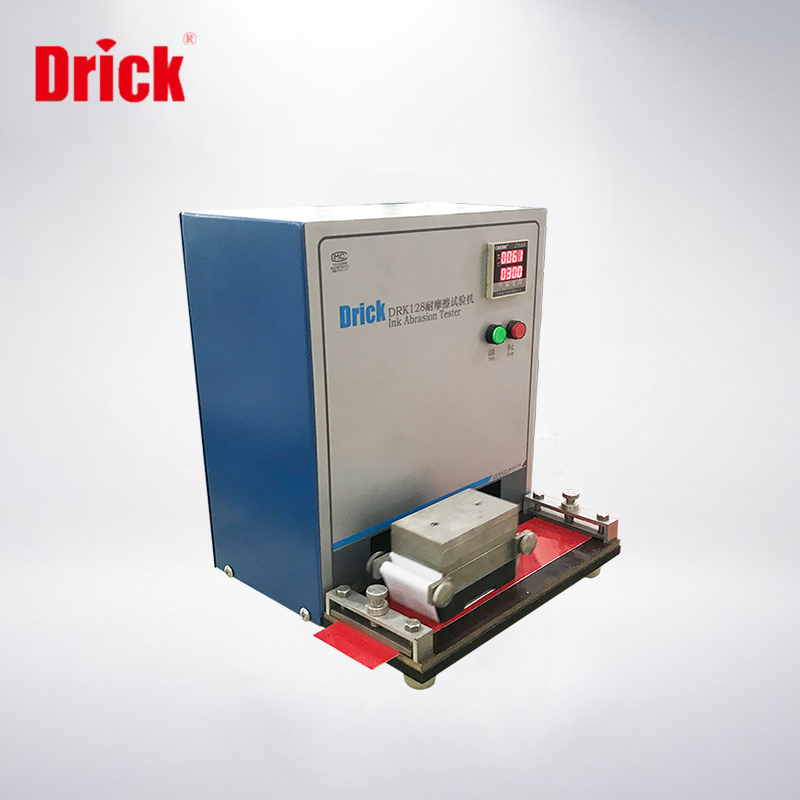

Rub Tester DRK128
Short Description:
DRK128 Rub Tester Product introduction DRK 128 Rub Tester is applying in testing the abrasion of print ink, PS photosensitive coating and other relative products’ coating. It is used to analyze the printing abrasion, ink peeling and other products’ coating hardness. The equipment is designed according to GB7706, JIS K5701, and ISO 9000. Product features The equipment is designed according to related standards strictly to ensure accurate test results. Memory when power...
DRK128 Rub Tester
Product introduction
DRK 128 Rub Tester is applying in testing the abrasion of print ink, PS photosensitive coating and other relative products’ coating. It is used to analyze the printing abrasion, ink peeling and other products’ coating hardness. The equipment is designed according to GB7706, JIS K5701, and ISO 9000.
Product features
- The equipment is designed according to related standards strictly to ensure accurate test results.
- Memory when power failure ;
- Built-in standard rubbing platform to ensure a uniform rubbing area. And the rubbing process is mute completely.
- The rubbing time is adjustable in order to test accurately.
- Oscillation frequency automatic counting.
Product Application
The tester is applying in testing the abrasion of print ink. It is used to analyze the printing abrasion, ink peeling and other products’ coating hardness. It can be used to do dry grinding tests, wet grinding tests, decolorizing test, the paper fuzzy test and special rubbing test.
Technical standard
The tester accords with the standards of GB/T7706、ASTMD5264 TAPPI,JISK5701 etc.
Product parameter
- Rubbing pressure: 20±0.2N
- Rubbing speed: 43 times/min
- Rubbing area: 155(L)mm×50(B)mm
- Rubbing Times: 0~ 999 times.
- Specimen Size: 230(L)mm×50(B)mm
- Power: 220V; 50HZ
- Dimension: 260×245×340 mm (L × W × H)
- Net Weight: 17kg
Main fixtures
Mainframe, operating manual
