Micro Thermal Analyzer DRK-X350
Short Description:
DRK-X350 Micro Thermal Analyzer DRK-X350 Micro Thermal Analyzer is widely used in fields such as medicine, chemical engineering, synthetic fibers, biology, mineralogy, and criminology. It is equipped with a microscope with a digital eyepiece. It can not only use the general eyepiece but also apply the advanced color CCD to study and measure the thermal characteristics of substances through a TV or monitor (provided by the customer). It can be used for the melting point determination of micr...

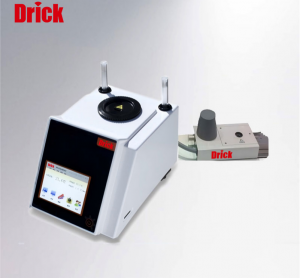

DRK-X350 Micro Thermal Analyzer
DRK-X350 Micro Thermal Analyzer is widely used in fields such as medicine, chemical engineering, synthetic fibers, biology, mineralogy, and criminology. It is equipped with a microscope with a digital eyepiece. It can not only use the general eyepiece but also apply the advanced color CCD to study and measure the thermal characteristics of substances through a TV or monitor (provided by the customer). It can be used for the melting point determination of micro samples, the melting point determination of sliced samples, and the thermodynamic research of bioengineering.
Product Features:
- The enclosed furnace body ensures temperature stability.
- The precise heating rate is adjustable from 0.1 to 20.0 without limit.
- It adopts a TFT true color touch screen.
- There are up to 20 sets of methods, with each set having a maximum of 99 segments.
- The maximum temperature can reach 400°C.
Technical Parameters:
| Temperature Range | Room Temperature – 400°C |
| Heating Rate | (0.1 – 20) °C/Min |
| Temperature Resolution | 0.1°C |
| Temperature Control Precision | ±0.3°C |
| Display Mode | TFT high-definition true color screen |
| Data Interface | USB RS232 SD Network Port |
| Slide/Cover Slip Specifications | 76 * 19 * 1/15 * 15 * 0.5mm |
| Field of View | 2mm |
| Working Distance of Sample Lens | At least 7mm |
| X – Y Table | Maximum movement of 13mm |
| Dimensions (Length * Width * Height)/Weight | 185 * 85 * 28mm/1kg |
| User Management | 15 |
| Number of Method Segments | 99 |
| Storage Capacity of Experimental Methods | 20 sets |
| Saved Results | 400 |
| Compliance Standards | FZ T 01057.6 – 2007 ASTM F766, EN ISO 3146 |
| Optional Accessories | Biological microscope, polarized light microscope (optional accessories) |
Note: Due to technological progress, the information may be changed without further notice. The product shall be subject to the actual object in the later stage.
