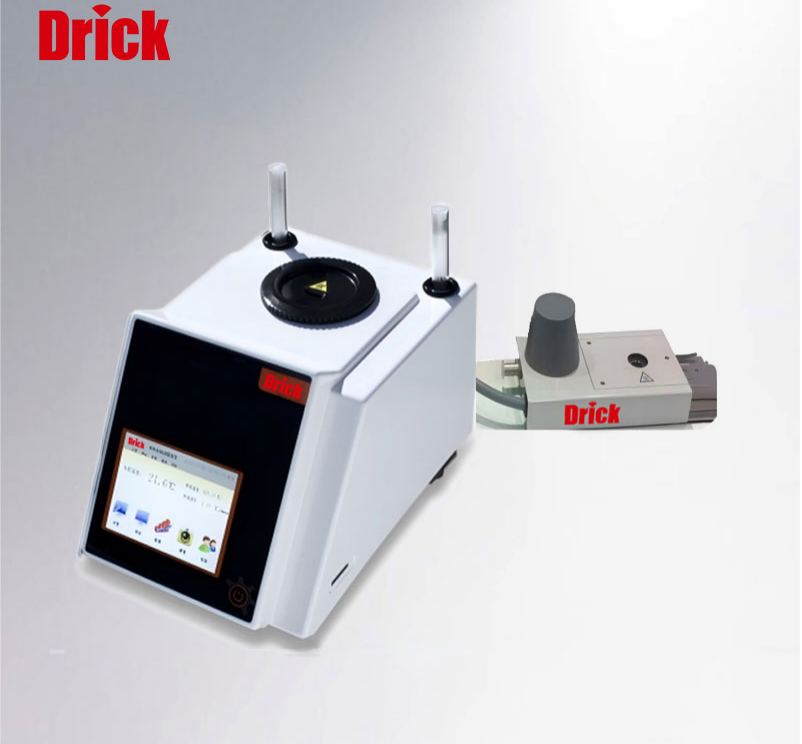

Micro Thermal Analyzer DRK-X300
Short Description:
DRK-X300 Micro Thermal Analyzer DRK-X300 Micro Thermal Analyzer has extensive applications in fields such as medicine, chemical engineering, synthetic fibers, biology, mineralogy, and criminology. It adopts a microscope with a digital eyepiece. Not only can the general eyepiece be used, but also the advanced color CCD can be applied to study and measure the thermal characteristics of substances through a TV or monitor (provided by the customer). It can be used for the melting point determina...
DRK-X300 Micro Thermal Analyzer
DRK-X300 Micro Thermal Analyzer has extensive applications in fields such as medicine, chemical engineering, synthetic fibers, biology, mineralogy, and criminology. It adopts a microscope with a digital eyepiece. Not only can the general eyepiece be used, but also the advanced color CCD can be applied to study and measure the thermal characteristics of substances through a TV or monitor (provided by the customer). It can be used for the melting point determination of micro samples, the melting point determination of sliced samples, and the thermodynamic research of bioengineering.
Product Features:
- The enclosed furnace body ensures temperature stability.
- The precise heating rate is adjustable from 0.1 to 20.0 in 200 steps without limit.
- It adopts a TFT true color touch screen.
Technical Parameters:
Temperature Range |
Room Temperature – 300°C |
Heating Rate |
(0.1 – 20) °C/Min, 200 steps infinitely adjustable |
Temperature Resolution |
0.1°C |
Temperature Control Precision |
±0.3°C |
Display Mode |
TFT high-definition true color screen |
Data Interface |
USB RS232 SD Network Port |
Slide/Cover Slip Specifications |
76 * 19 * 1/15 * 15 * 0.5mm |
Field of View |
2mm |
Working Distance of Sample Lens |
At least 7mm |
X-Y Table |
Maximum movement of 13mm |
Dimensions (Length * Width * Height)/Weight |
185 * 85 * 28mm/1kg |
User Management |
None |
Number of Method Segments |
1 segment |
Storage Capacity of Experimental Methods |
10 sets |
Saved Results |
200 |
Compliance Standards |
FZ T 01057.6 – 2007 ASTM F766, EN ISO 3146 GB/T 16582 |
Optional Accessories |
Biological microscope, polarized light microscope (optional accessories) |
Note: Due to technological progress, the information may be changed without further notice. The product shall be subject to the actual object in the later stage.
