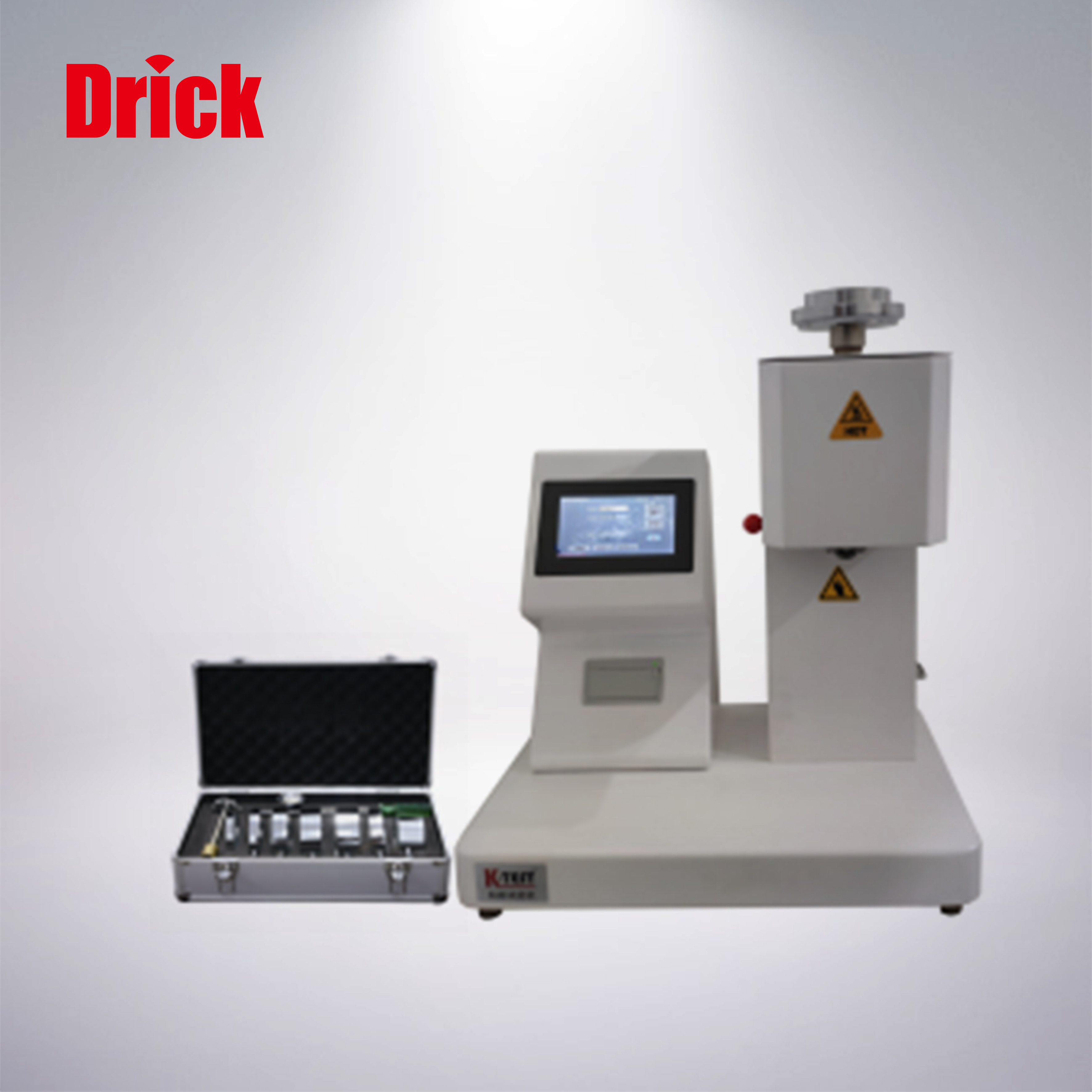

DRK-XNR400C Melt Flow Index (MFR & MVR)
Overview
DRK-XNR400C Melt Flow Index is an instrument used to measure the Melt Mass – Flow Rate (MFR, unit: g/10min) and Melt Volume – Flow Rate (MVR, unit: cm³/10min) of thermoplastic plastics. This instrument complies with the requirements of the JB/T5456 standard and is applicable to standards such as GB/T3682 and ISO1133. It is widely used for the determination of the melt index values of plastics.
Technical Specifications
|
DRK-XNR400C Melt Flow Index |
Details |
| Display Method | Touch – screen display |
| Measurement Methods | Mass method (MFR) / Volume method (MVR) |
| Constant Temperature Range | 100 – 450°C |
| Temperature Display Accuracy | 0.01°C |
| Temperature Control Accuracy | ±0.2°C |
| Timing Range | 0.1 – 999 seconds |
| Timing Accuracy | 0.1 second |
| Cutting Methods | Manual and automatic cutting methods |
| Printing Method | Mini – printer, can print test reports |
| Die Material | Tungsten carbide |
| Die Diameter | 2.095±0.005 mm |
| Discharge Port Length | 8.000±0.025mm |
| Loading Barrel Diameter | Φ9.550±0.025mm |
| Loading Barrel Length | 152±0.1mm |
| Piston Rod Head Diameter | 9.475±0.015mm |
| Piston Rod Head Length | 6.350±0.100mm |
| Power Supply Voltage | 220V±10%, 50Hz, 1KW |
Weight Classification
|
Level |
Weight 1 |
Weight 2 |
Weight 3 |
Weight 4 |
Weight 5 |
Weight 6 |
Weight 7 |
Weight 8 |
Total Weight |
| 1 | 325g (basic weight) | 325g | |||||||
| 2 | 325g (basic weight) | 875g | 1200g | ||||||
| 3 | 325g (basic weight) | 1835g | 2160g | ||||||
| 4 | 325g (basic weight) | 3475g | 3800g | ||||||
| 5 | 325g (basic weight) | 4675g | 5000g | ||||||
| 6 | 325g (basic weight) | 4675g | 5000g | 10000g | |||||
| 7 | 325g (basic weight) | 2500g | 4675g | 5000g | 12500g | ||||
| 8 | 325g (basic weight) | 875g | 1835g | 2500g | 2915g | 3475g | 4675g | 5000g | 21600g |
Configuration
|
Name |
Unit |
Quantity |
Remarks |
| Weights | piece | 8 | One each of 0.325kg, 0.875kg, 1.835kg, 2.500kg, 2.915kg, 3.475kg, 4.675kg, and 5.000kg |
| Spirit Level | piece | 1 | - |
| Die | piece | 1 | - |
| Die Cleaning Rod | piece | 1 | - |
| Barrel Cleaning Rod | piece | 1 | - |
| Loading Rod | piece | 1 | - |
| Hopper | piece | 1 | - |
| Sampling Tray | piece | 1 | - |
| Mini – Printer | piece | 1 | - |
| Instruction Manual, Packing List, and Certificate of Conformity | set | 1 | - |
