Fully Automatic Video Melting Point Apparatus DRK-R90
Short Description:
DRK-R90 Fully Automatic Video Melting Point Apparatus DRK-R90 fully automatic melting point apparatus perfectly combines high-precision temperature control technology and high-definition video camera technology. It not only provides users with accurate, stable and reliable test results but also brings users an efficient and convenient testing experience. The high-definition video allows users to clearly see the whole process of sample melting. The automatic detection and real-time spectrum ...

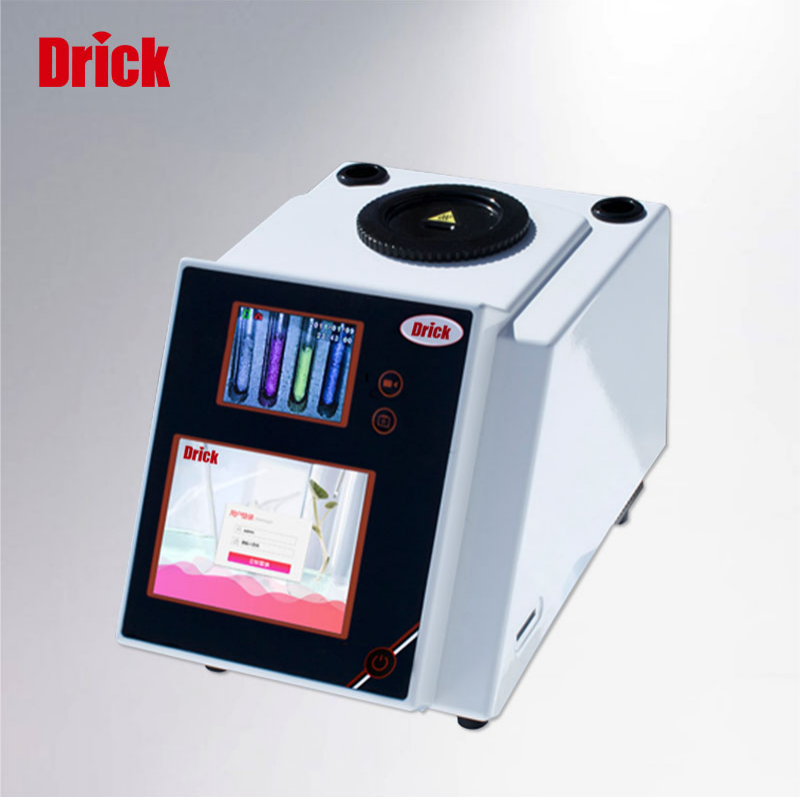

DRK-R90 Fully Automatic Video Melting Point Apparatus
DRK-R90 fully automatic melting point apparatus perfectly combines high-precision temperature control technology and high-definition video camera technology. It not only provides users with accurate, stable and reliable test results but also brings users an efficient and convenient testing experience. The high-definition video allows users to clearly see the whole process of sample melting. The automatic detection and real-time spectrum display facilitate users to accurately measure the melting point and melting range of the sample.
Application Areas:
The melting point apparatus occupies an important position in the chemical industry and pharmaceutical research. It is an instrument for producing food, drugs, spices, dyes and other organic crystalline substances.
Product Features:
- High-definition video replaces traditional microscopic visual inspection;
- Capable of processing 4 samples at a time;
- Highly automated integration, realizing one-key measurement function;
- Fully automatically record the melting range, initial melting point and final melting point;
- Compatible with the measurement of powdered and 块状 substances;
- Equipped with a high-definition camera lens module.
Technical Parameters:
| Temperature Range | Room temperature – 420 °C | User Management | Yes |
| Detection Method | Fully automatic (compatible with manual) | Number of User Management | 20 |
| Processing Capacity | 4 samples per batch (4 samples can be done simultaneously) | Spectrum Storage Capacity | 80 sets |
| Minimum Temperature Display Value | 0.1 °C | Data Storage Results | 1000 |
| Heating Rate | 0.1 °C – 20 °C (200 steps, infinitely adjustable) | Experimental Scheme | 100 sets |
| Accuracy | ±0.3 °C (<250 °C) ±0.5 °C (>250 °C) |
Display Method | TFT high-definition true color screen |
| Repeatability | Melting point repeatability ±0.1 °C at 0.1 °C/Min | Data Interface | USB, RS232, Network Port |
| Exploration Mode | Yes | Capillary Size | Outer diameter φ1.4mm Inner diameter: φ1.0mm |
| Video Function | Taking photos and videos | Packaging Size | 430 * 320 * 370mm |
| Video Playback | Yes | Power Supply | 110 – 230V 50/60HZ 120W |
| Magnification | 7 | Gross Weight | 6.15kg |
Note: Due to technological progress, the information may be changed without further notice. The product shall be subject to the actual object in the later stage.
