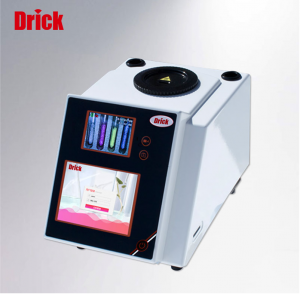

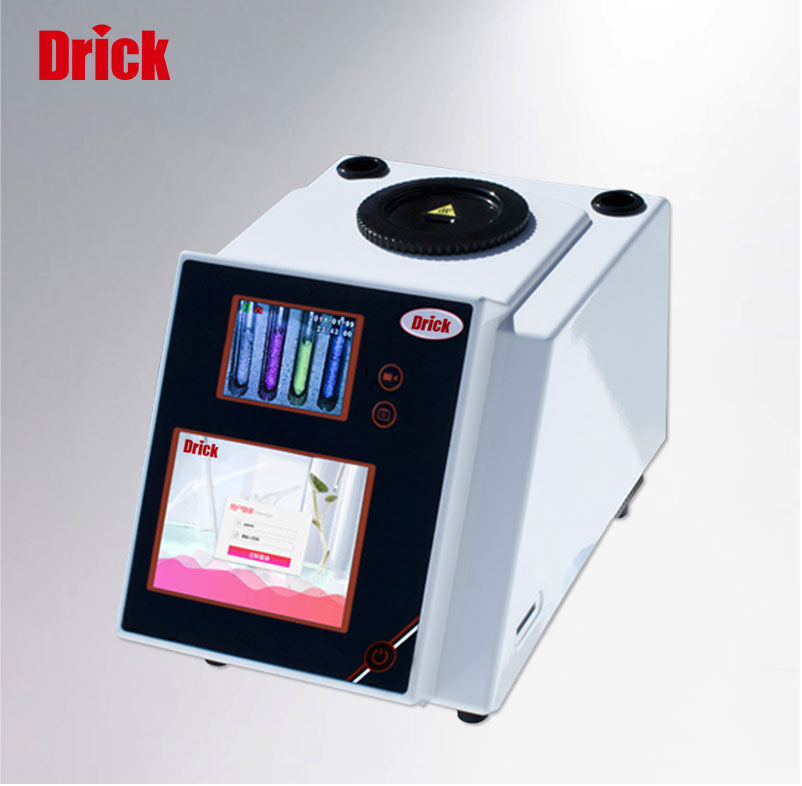

Fully Automatic Video Melting Point Apparatus DRK-R80
Short Description:
DRK-R80 Fully Automatic Video Melting Point Apparatus DRK-R80 Fully Automatic Melting Point Apparatus perfectly combines high-precision temperature control technology and high-definition video camera technology. It not only provides users with accurate, stable and reliable test results but also brings users an efficient and convenient testing experience. The high-definition video allows users to clearly see the whole process of sample melting. The automatic detection and real-time spectrum d...
DRK-R80 Fully Automatic Video Melting Point Apparatus
DRK-R80 Fully Automatic Melting Point Apparatus perfectly combines high-precision temperature control technology and high-definition video camera technology. It not only provides users with accurate, stable and reliable test results but also brings users an efficient and convenient testing experience. The high-definition video allows users to clearly see the whole process of sample melting. The automatic detection and real-time spectrum display facilitate users to accurately measure the melting point and melting range of the sample.
Application Areas:
The melting point apparatus plays an important role in the chemical industry and pharmaceutical research. It is an instrument for producing food, drugs, spices, dyes and other organic crystalline substances.
Product Features:
- Equipped with a high-definition camera module;
- Capable of processing 4 samples at a time;
- Highly automated integration, realizing one-key measurement function;
- Fully automatically record the melting range, initial melting point and final melting point.
Technical Parameters:
Temperature Range | Room temperature – 400 °C | Number of User Management | 10 |
Detection Method | Fully automatic (compatible with manual) | Spectrum Storage Capacity | 20 sets |
Processing Capacity | 4 samples per batch (4 samples can be done simultaneously) | Data Storage Results | 600 |
Minimum Temperature Display Value | 0.1 °C | Experimental Scheme | 40 sets |
Heating Rate | 0.1 °C – 20 °C (200 steps, infinitely adjustable) | Video Storage Capacity | 16G (high configuration, extremely fast) |
Accuracy | ±0.3 °C (<250 °C) ±0.5 °C (>250 °C) |
Display Method | TFT high-definition true color screen |
Repeatability | Melting point repeatability ±0.1 °C at 0.1 °C/Min | Data Interface | USB, RS232, Network Port |
Exploration Mode | Yes | Capillary Size | Outer diameter φ1.4mm Inner diameter: φ1.0mm |
Video Function | Taking photos and videos | Packaging Size | 430 * 320 * 370mm |
Video Playback | Yes | Power Supply | 110 – 230V 50/60HZ 120W |
Magnification | 7 | Gross Weight | 6.15kg |
Note: Due to technological progress, the information may be changed without further notice. The product shall be subject to the actual object in the later stage.
