Factory directly Oxygen Booster - F0007-B – FABRIC VERTICAL BURN TESTER – Drick

This apparatus measures the flame spread properties of vertically oriented textile fabrics

intended for apparel, curtains and draperies in the form of a single or multi component fabrics.

A textile is held vertically in a frame. A small flame is used to ignite the specimen and the

time is measured for the flame to spread up the specimen.

The instrument operates by applying a defined ignition flame from a specified burner,

for a defined period of time, to textile specimens which are vertically oriented. The flame

spread time is the time in seconds for a flame to travel between marker threads located

at defined distances.

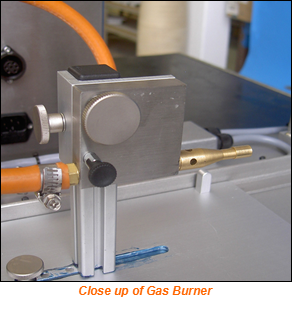

The Gas Burner is designed to allow several different positioning, dependent on the angle

of test required. Surface ignition and Edge ignition can be achieved on the Fabric Vertical

Burn Tester. Test specimens are cut to size with dimensions 560mm x 170mm.
Timing devices are used with the Fabric Vertical Burn Tester to control and measure the

flame application time, the after-flame time and/or the afterglow time. They are started

automatically, and can be pressed manually as required.

Applications:
Coated textiles
Quilted textiles
Multi layered textiles
Sandwiched textiles

Features:
Adjustable flame
Easy fixing mechanisms
Specimen Mounting Frame:
560mm x 150mm
Gas Burner
Gas Timer
Timing Devices

Benefits:
Easy to use
Fast results
Accurate

Standards:
AS 2755.2
ISO 6941

Options:

StainlessSteelDraftEnclosure

BrushingDevice

Connections:
LPG: Commercial Grade:
Propane, Butane or Butane/Propane mixtures
Electrical: 220/240 VAC @ 50 HZ
Electrical: 110 VAC @ 60 HZ
(please specify when ordering)

Dimensions:
H: 600mm
W: 700mm
D: 540mm
Weight: 45kg
