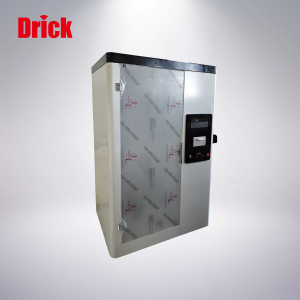

Condom Inflation Bursting Volume & Bursting Pressure Tester (Air type) DRK013

DRK013 Condom Inflation Bursting Volume & Bursting Pressure Tester (Air type) – 1 Station Instruction

Product Introduction

Condom Inflation Bursting Volume & Bursting Pressure Tester is designed and manufactured in accordance with “GB/T 7544-2019 Technical Requirements and Test Methods for Natural Rubber Latex Male Condoms”. It is mainly applicable to the determination of burst volume and burst pressure volume of various condoms and rubber gloves. It can meet the testing needs of drug inspection institutes and quality inspection institutes for products.

Product Features

• Standard fixtures are provided, which can complete the test easily without damaging the samples.
• Professional measurement and control software can statistically analyze burst flow, volume, and pressure data in real time.
• It adopts a positive pressure design principle, with simple operation, stable and reliable performance.
• The test process features “one – click” operation, being highly efficient and intelligent.
• It has a high – definition liquid crystal display, and test results are automatically counted and printed.
• It supports test accessories, offers flexible test modes, and is compatible with a wide variety of applications.
• It can not only automatically display and record the volume and pressure values when the condom bursts, but also automatically analyze information of unqualified products.
• Operators can independently add or edit test standards.
• It can operate offline, automatically collect data, record the pressure value, volume value at the time of burst and other data during the test, and can also generate reports.

Test Principle

Put the condom on the blowing rod to start the test. The instrument starts to inflate the condom. As the condom expands and bursts, the burst pressure and the inflation volume at the time of burst are displayed on the screen. The burst volume is expressed in cubic decimeters and rounded to 1 dm³; the burst pressure is expressed in kilopascals and rounded to 0.01 kPa. The inflation rate can be adjusted by turning the knob. If there is air leakage during the inflation process, the test can be manually terminated. If the condom does not leak air, measure and record the burst volume and pressure.

Technical Specifications
