2017 Good Quality Inlay Testing Machine - F0007-A – Fabric Vertical Burn Tester – Drick
Short Description:
The Fabric Vertical Burn Tester measures the surface burning time of textile fabrics which have raised fibre surfaces i.e.: a napped, pile, tufted, flocked or similar surface. A textile specimen is held vertically in a frame, and its raised surface is ignited near the top. The spread of the flame downwards on the surface of the fabric to a specified point is timed. The Gas Burner is designed to allow several different positioning, dependent on the angle of test required. Face test, ...
2017 Good Quality Inlay Testing Machine - F0007-A – Fabric Vertical Burn Tester – Drick Detail:
The Fabric Vertical Burn Tester measures the surface burning time of textile fabrics which
have raised fibre surfaces i.e.: a napped, pile, tufted, flocked or similar surface.
A textile specimen is held vertically in a frame, and its raised surface is ignited near the top.
The spread of the flame downwards on the surface of the fabric to a specified point is timed.

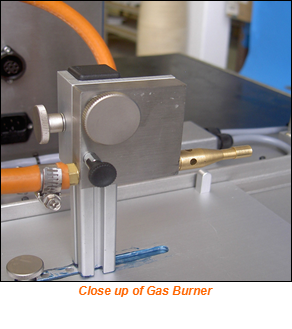

The Gas Burner is designed to allow several different positioning, dependent on the angle
of test required. Face test, Bottom-edge ignition, horizontal stand-by position, horizontal
reach adjustment, and vertical stand-by flame height can all be achieved on the Fabric Vertical
Burn Tester. Test specimens are cut to size with dimensions 150mm x 75mm.
Timing devices are used with the Fabric Vertical Burn Tester to control and measure the flame
application time, the after-flame time and/or the afterglow time. They are started automatically,
and can be pressed manually as required.
Applications:
Napped textiles
Pile textiles
Tufted textiles
Flocked textiles
Features:
Adjustable flame
Easy fixing mechanisms
Specimen Mounting Frame:
150mm x 75mm
Gas Burner
Gas Timer
Timing Devices
Benefits:
Easy to use
Fast results
Accurate
Standards:
AS 2755.3
ISO 10047
Options:
Stainless Steel Draft Enclosure
Brushing Device
Connections:
LPG: Commercial Grade:
Propane, Butane or Butane/Propane mixtures
Electrical: 220/240 VAC @ 50 HZ
Electrical: 110 VAC @ 60 HZ
(please specify when ordering)
Dimensions:
H: 400mm
W: 700mm
D: 540mm
Weight: 45kg
